High Power LED Light Sources

Last Updated on : 10-1-2017

High Power LED Light Sources:

  • Long life > 20000 hrs and more
  • Good Lumen output (Superior to 250w of halogen)
  • Instant on/off  (no warm up or cool down)
  • No change in colour temperature over entire range of colour spectrum.
  • Does not emit ultraviolet and infrared light .Reduced heat transmission to the Endoscope.
  • LCD Display : Brightness Control
  • Consumes very less power.
  • No annual bulb change is necessary















DEVICE:

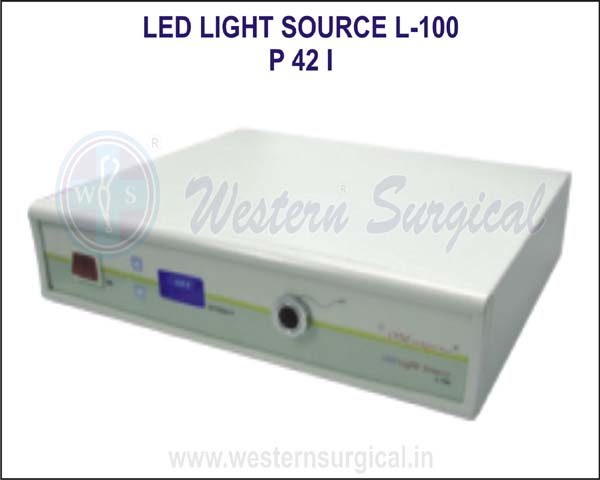

Item No.    L100                           Description         Led Light Source LED 100





STANDARD ACCESSORIES



Part no.     MC-03                       Description          Mains cord



                                           TECHNICAL DATA
Lamp LED-100
Colour Temperature  6000"k
Standard connection Karl Storz type , others on request
Lumen Maintenance 90% After 10000hrs
Lumen Output 750 Lumens
Ambient temperature  +10 "C to +40"C in operating mode
Cooling Method  Forced Air cooling
Power Supply  100-240 AC
Frequency 50 HZ
Maximum Power 25 w
Classification Protection Class I,Type BF
Dimensions (W x H x D) 300 x 30 x 255 mm
Weight 5.5 kgs.
