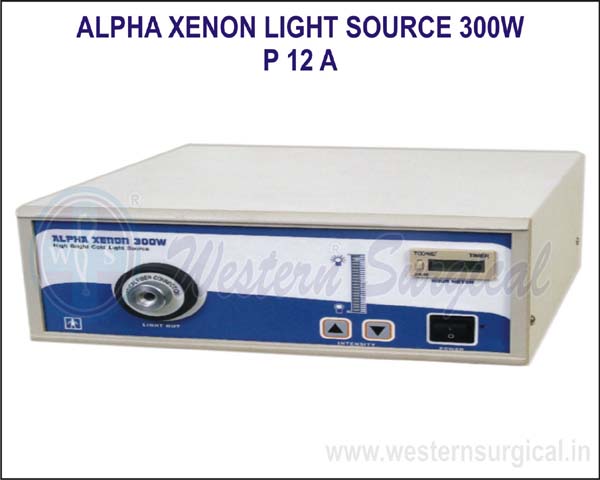

Alpha Xenon Light Source 300w
Im Interested in this Product. Submit Inquiry

Alpha Xenon Light Source 300w

Last Updated on : 10-1-2017

DESCRIPTION:-

                  The Alpha Xenon 300w is high pressure lamp which provides exceptional illumination of  the endoscopic field of  operation at the output of the fiber optics  the regained light energy is about 1500 lumens i.e. (tour times the energy of halogen 250 w Bulb) Intensity can be adjusted electronically from 0% to 100%. Life span of bulb is 500 hrs also available timer.



                                                           TECHNICAL SPECIFICATIONS
Lamps Xenon 300w Double Ended
Life span of Lamp 500 Hrs
Light Guide Connection Storz Type
Aperture Electronic Control
Colour Temperature 6000° K
Operation Temperature + 10° C to 40° C
Operation Humidity 10% to 90%
Dimension (W x H x D)mm 305x137x315
Weight 8 KG
Voltage for Unit 270 VAC
Frequency 50 HZ
Power Consumption 470W Maximum
Main Fuses 5 A



                                                                  CLASIFICATION
Safety Class 1
Type BF
Manufactured and  Tested Acc to IEC 601-1-1 & IEC 601-1-2
Classification of Directive 93/42  EEC I



                                                                SCOPE OF SUPPLY
                                                Alpha Xenon Light Source 300w Consist of
Light Source Unit XEN-300 1
Mains Cord MC-03 1
Xenon Lamp 300w XL-300 1
Fuse  5A  2
User Manual UM-XEN-300 1



                                                                SCOPE OF SUPPLY
                                                Alpha Xenon Light Source 180w Consist of
Light Source Unit XEN-180 1
Mains Cord MC-03 1
Xenon Lamp 180w XL-180 1
Fuse  5A  2
User Manual UM-XEN-180 1
