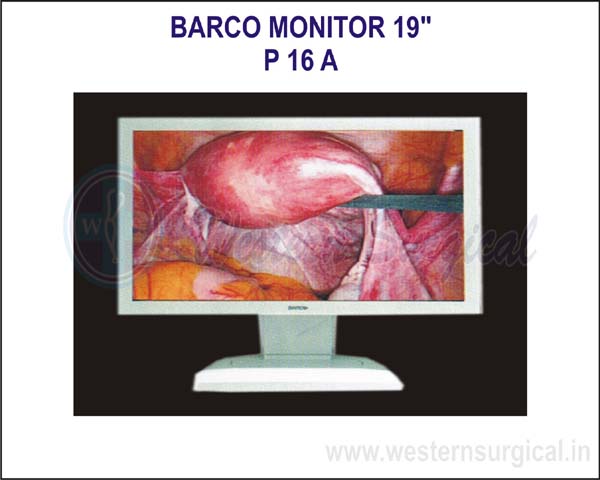

Barco Monitor 19

Previous Next
Barco Monitor 19
Im Interested in this Product. Submit Inquiry

Barco Monitor 19

Last Updated on : 10-1-2017

Barco Monitor 19":

  1. TFT displays with wide screen format
  2. Back light stabillization system
  3. Built in multiple display mode
  4. True color restore
  5. Wide viewing angle
  6. Hygenic design with full glass front



 DEVICE:



Item No.                            Description

 LM24                              Medical Grade Monitor 24"

LM26                               Medical Grade Monitor 26"





                                           TECHNICAL DATA
Model LM26 LM24
Display Size 26" 23.6"
Support color 1.07 billion 1.07 billion
Resolution 1920 x 1080 1920 x 1080
Pixel Pitch 0.300 x 0.300mm 0.270 x 0.270mm
Brightness 450cd/m2 Typ 400cd/m2 Typ
Contrast 1400:1 Typ 1000:1 Typ
Angle of view 178" Typ 178" Typ
Responce time 8ms. Typ 5ms. Typ
Input single interface DVI-D:24pin/VGA:D-Sub 15pin DV-BNCI-D:24pin/HD-SDI
  CVBS:BNC/S-Video:DIN4 YPbPr:BNC*3/RGBS:BNC*4
  ypbpr:BNC*3/RGBS:BNC*4 CVBS:BNC/S-VIDEO:DIV4
  HD-SDI:BNC/Fiber : FC(optional) VGA:D-Sub15 pin/Fiber:FC(optional)
Output single Inteface DVI-D:24pin/CVBS:BNC DVI-D:24pin/HD-SDI:BNC
  S-VIDEO:DIN4/YPbpr:BNC*3 RGBS:BNC*4/YPbpR:BNC*3
  RGBS:BNC*4/HD-SDI:BNC CVBS:BNC/S-VIDEO:DIN 4
Size 662(H)x412(V)x100(D)MM 566(W)x346.2(H)x640(D)MM
Weight 9.2 kgs. 7 kgs
Weight with stand 13.1 kg 10.9 kg
Standard Mounting VESA 100x100mm VESA 100x100mm
Power Supply DC 24V DC 24V
Power Consumption 55W max 45W max
Power Saving EPA, VESA EPA, VESA
MTBF >50,000 hours  >50,000 hours
  Professional Protective glass Professional Protective glass
